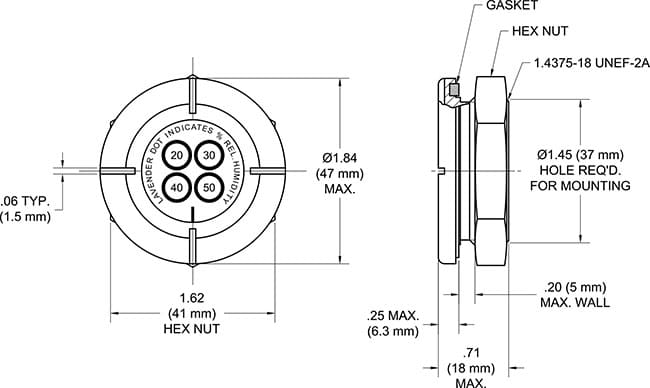

This is a larger-sized clear anodized aluminum Humidity Indicator Plug. It may be installed in a rigid container through a 1.45 in. (37 mm) diameter hole. Lock nut and gasket are furnished. Comes with a 20-30-40-50% disc, which is field replaceable with a 1.188 in. by .050 in. (30 mm x 1 mm) flat steel blade. NSN # 6685-00-989-5312.
Also available with black anodize finish as TA398-2345S. Meets MS18013-2. Weight: 0.09 lbs. (41 grams) Maximum Internal Pressure: 10 psiTA396 is appropriate for use on NEMA 1, 2, 3, 3R, 3S, 4, 5, 6, 12, 12K, and 13 enclosures, as well as IP66/IP67 enclosures. This item may also be appropriate for use on other NEMA or IP enclosures, depending upon the application.
